LH-RSD
Material Specification

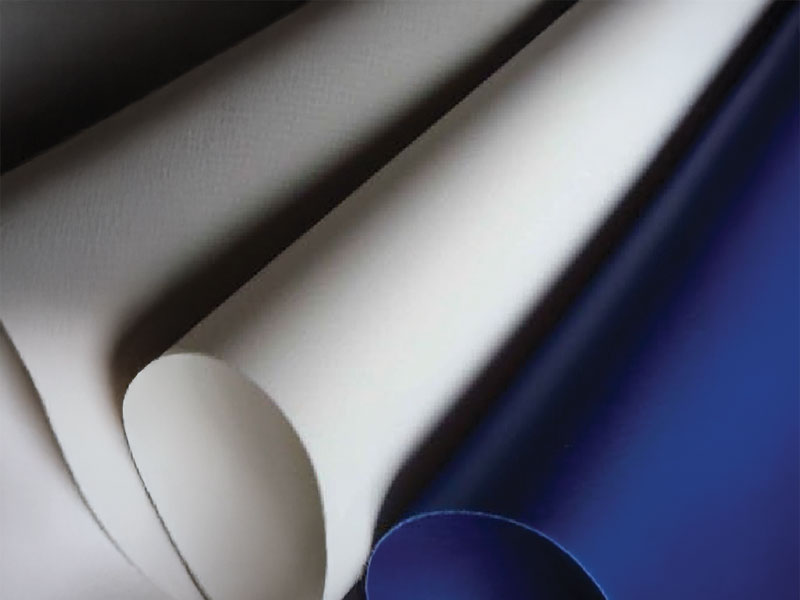

Shutter Curtain
The door is made of 0.8-1.0mm thick high-density PVC base fabric, with a 1.5mm thick PVC transpar-ent window in the middle.
Professional Industrial
Zipper Technology
The zipper slides smoothly up and down in the matching guide groove, the door curtain does not need metal wind-resistant strips, and the door curtain is silent and light during operate up and down.

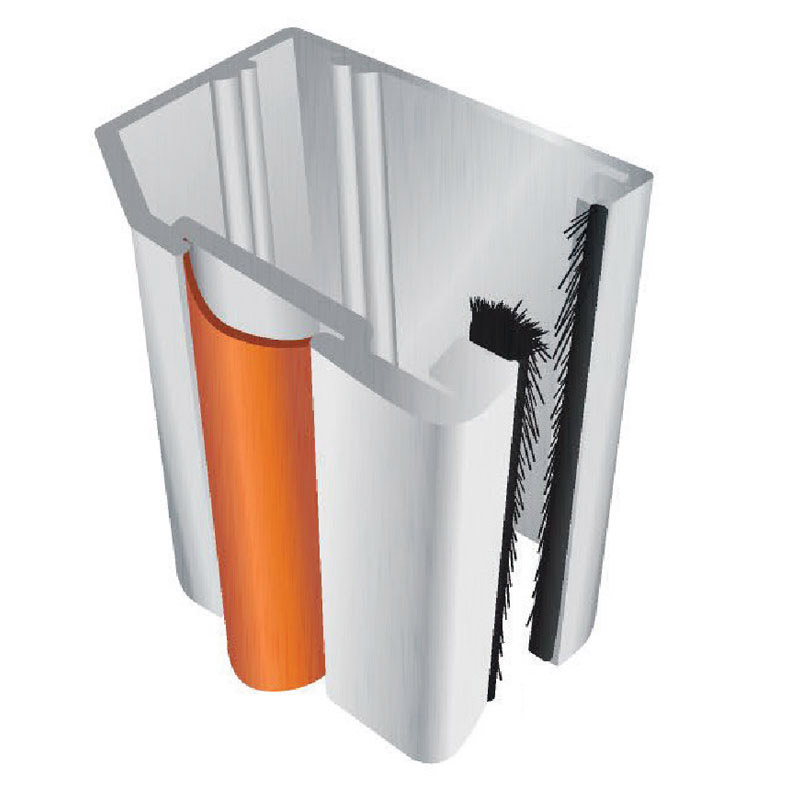

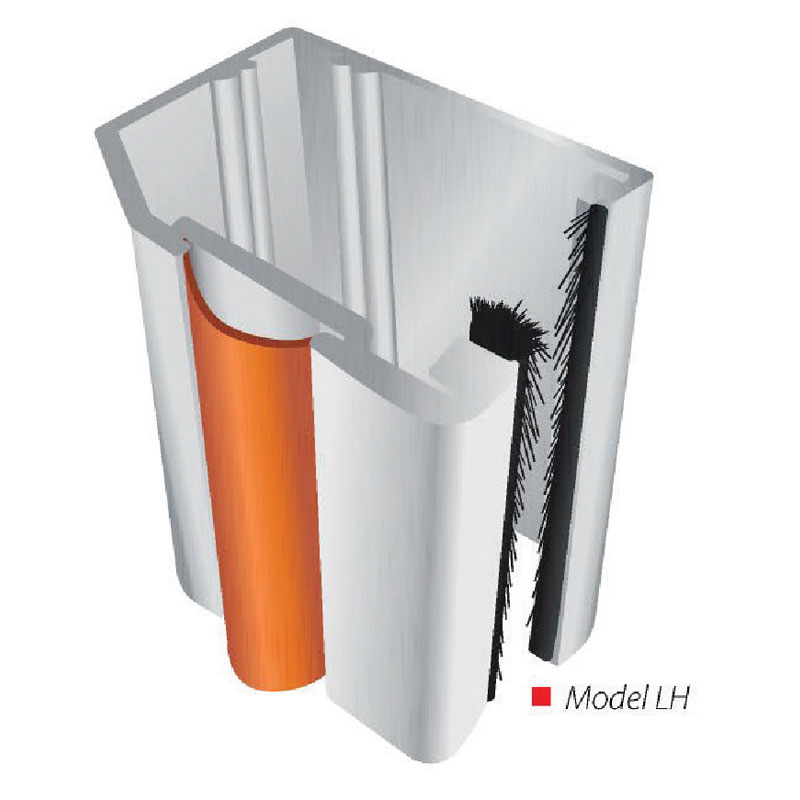

Special Guide Rail
Plastic steel guide groove and aluminium alloy base are combined into a special guide rail, to make the zipper fast rolling door have better sealing perfor-mance and achieve better energy saving effect.
Outer Cover of The Guide Rail
Made of stainless steel plate structure, the surface of high-quality galvanized plate is sprayed with plastic, and the high-quality aluminium alloy with anti-oxida-tion treatment is available.

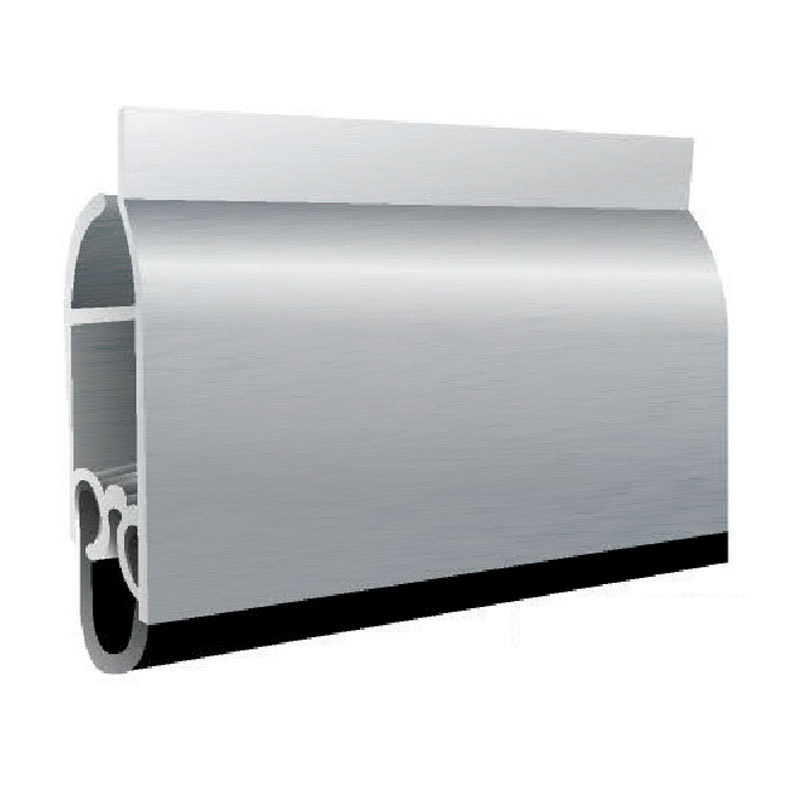

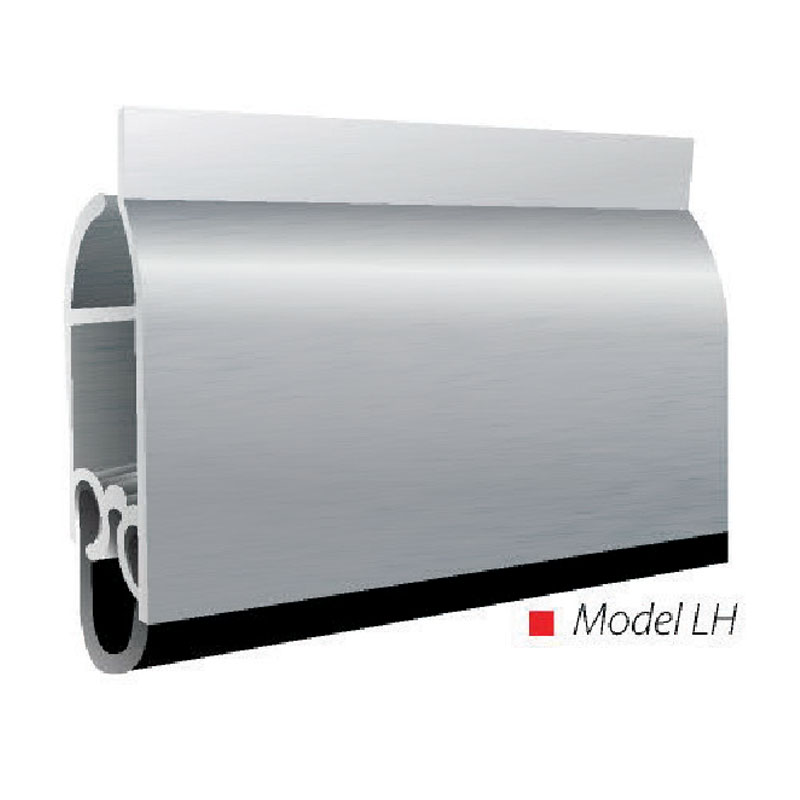

Safety Soft Bottom Edge
Which allowing the door curtain to return when it encounters obstacles during the descending process, fully ensuring the safety of pedestrians, vehicles, and goods, even if there is a collision, it will not cause permanent damage to the curtain and bottom edge.

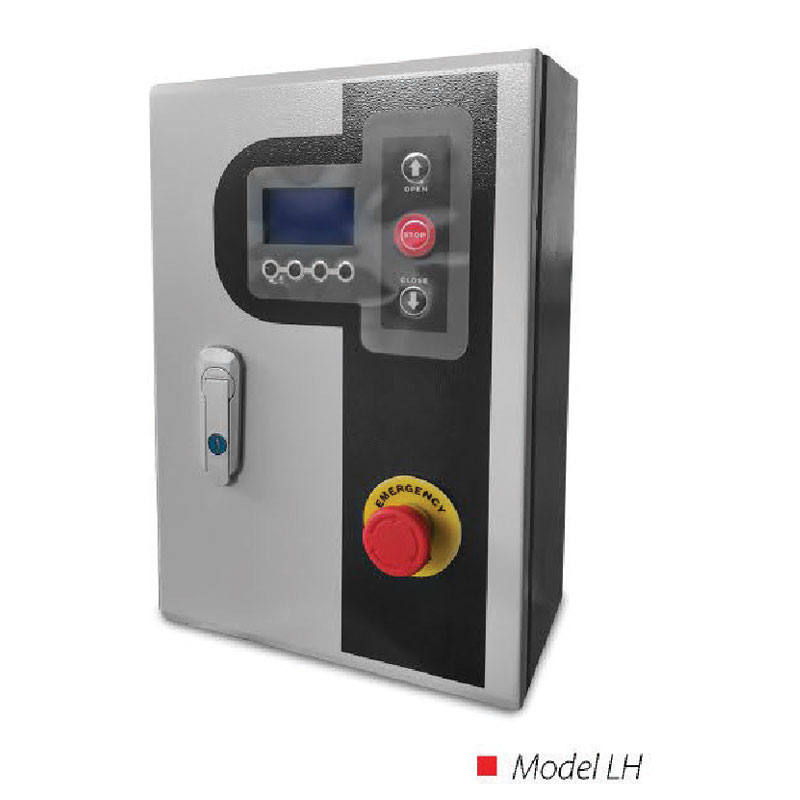

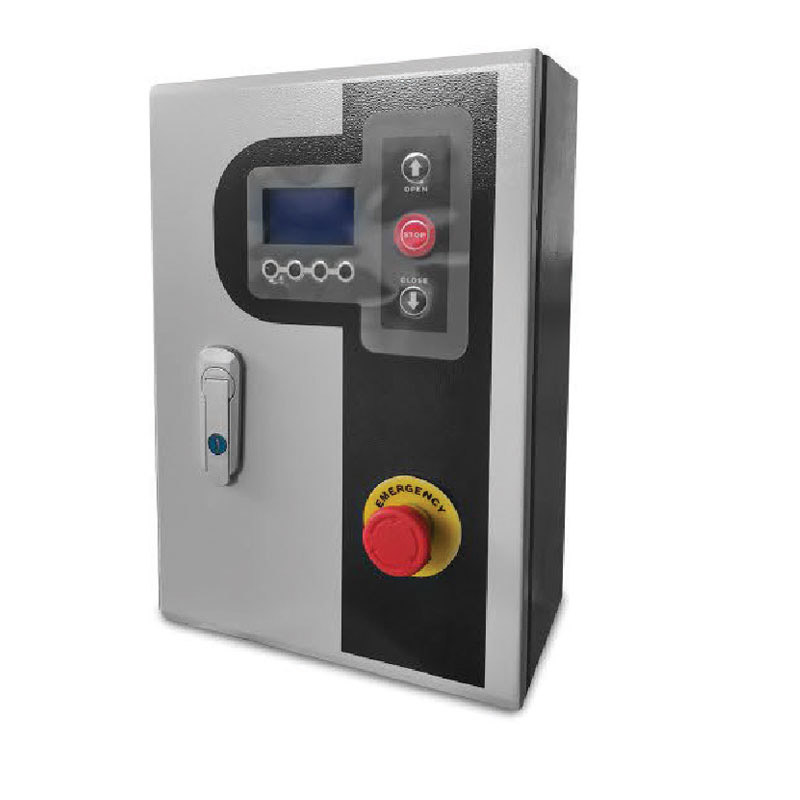

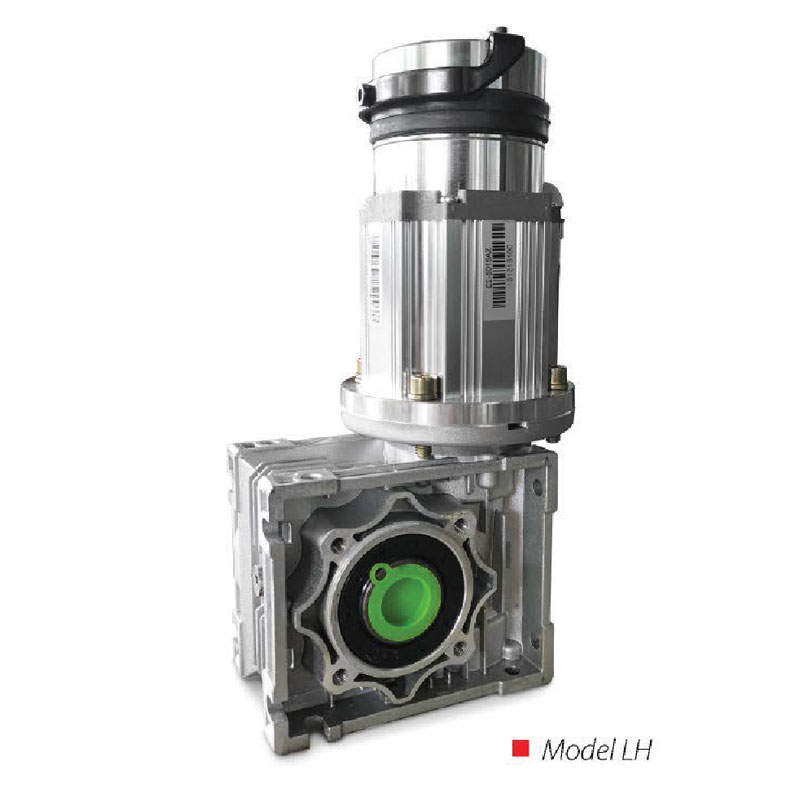

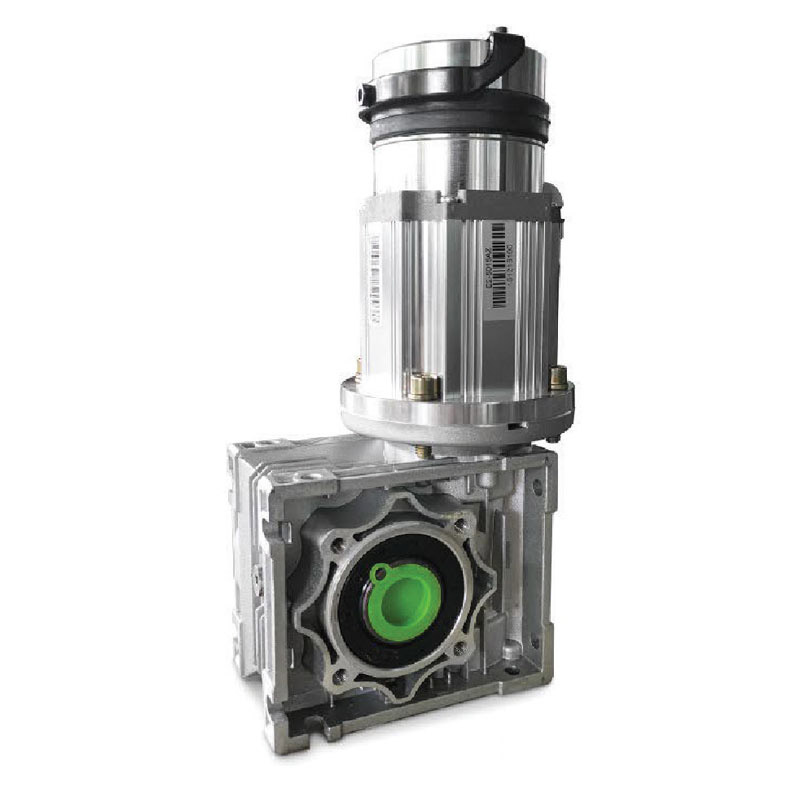

Dedicated Servo Motor And Control System
Opening speed of the zipper-type fast rolling door can reach 2m/s (1.2 – 2.0m/s adjustable), making high efficiency and energy saving more effective.
Derailment Automatic Repair System
To ensure that the door body does not need to be manually operated after being hit, and the door curtain can be automatically repaired without stopping work for maintenance.
Curtain Color
A variety of standard colors to choose from, such as: red, yellow, blue, white, grey and full transparent.
Product Quality
- Long service life
No rust, no deformation, anti-ultraviolet, 1.5 million times of continuous opening design, long service life 20 years. - Safety performance
Equipped with comprehensive safety protection system, such as safety censors, airbag design, etc. - Good appearance
Quiet, stable, light and clean. - Improve work efficiency
Practice has proved that when vehicles enter and exit a doorway more than 50 times a day, the use of fast rolling doors is a necessary investment. Under high traffic conditions, our fast doors can increase work efficiency by more than 40%. - Improve the working environment
Effectively isolate rain, mosquitoes and dust, etc., and keep the workshop environment constant, such as temperature and cleanliness. - Reduce energy consumption
Such as air-conditioning and heating, etc., using our fast door can save energy at least 60%. - Improve corporate image
Safety, smooth operation and beautiful appearance of the door.
The difference between zipper fast rolling door and roller fast rolling door
The zipper-type fast rolling door curtain has no metal materials, which improves the safety of collision avoidance, can realize automatic repair, and there is no noise during operate up and down With the same drive and control configuration of the zipper fast rolling door and the drum fast rolling door, the lifting speed can reach 1.7 mis, while the conven-tional speed of the drum fast rolling can reach 1.2 m/s
Technical Drawing
