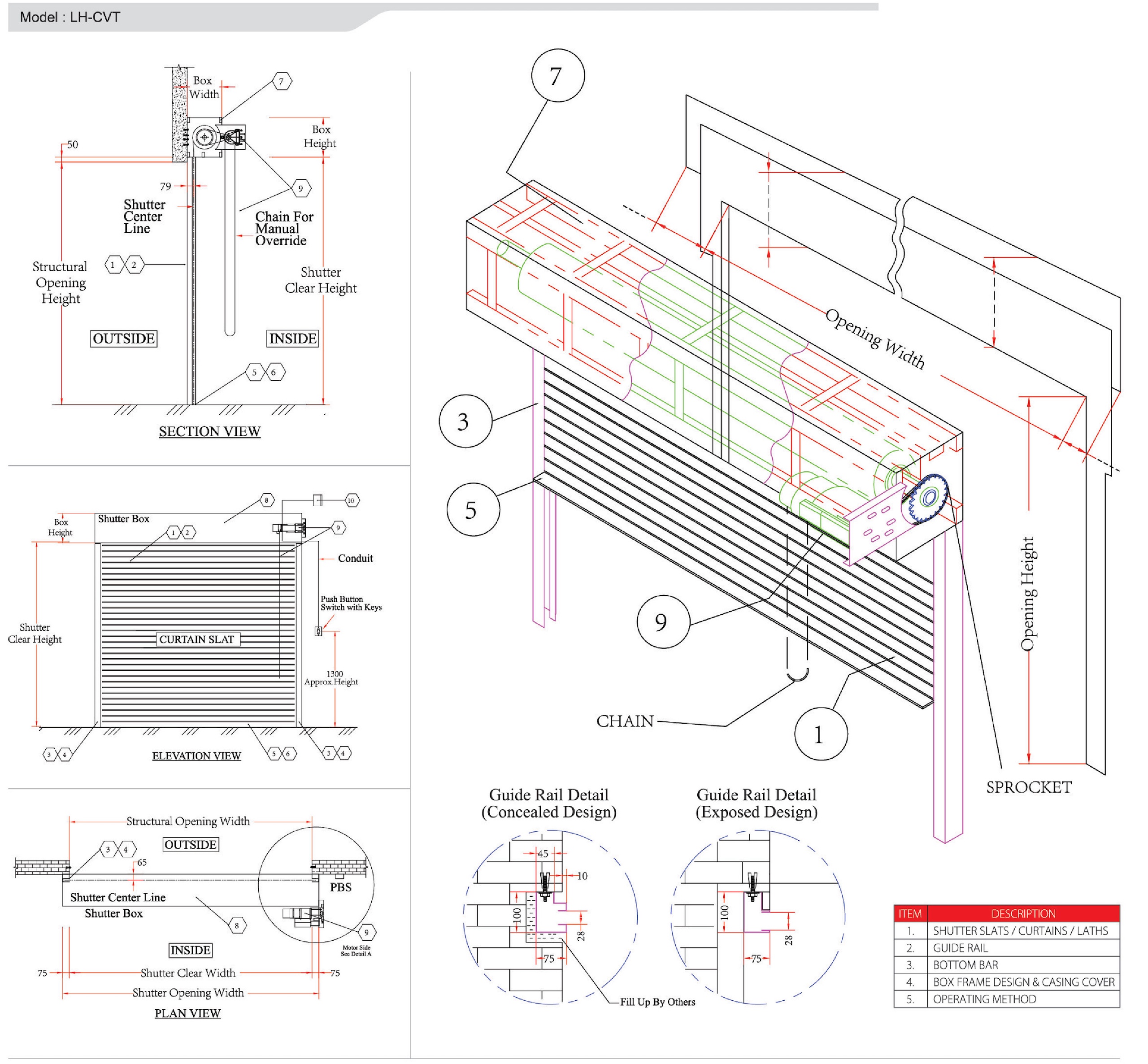

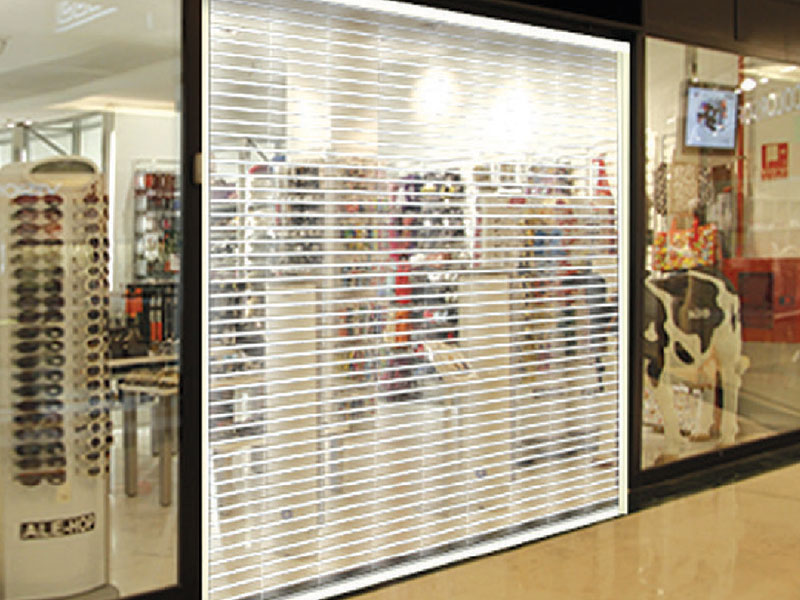

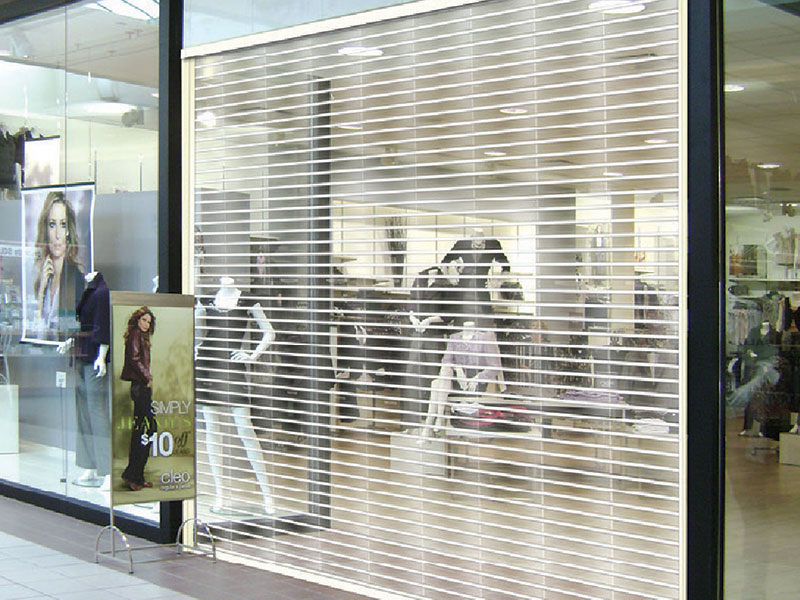

Clear View Transparent Roller Shutter

LH-CVT

Material Specification

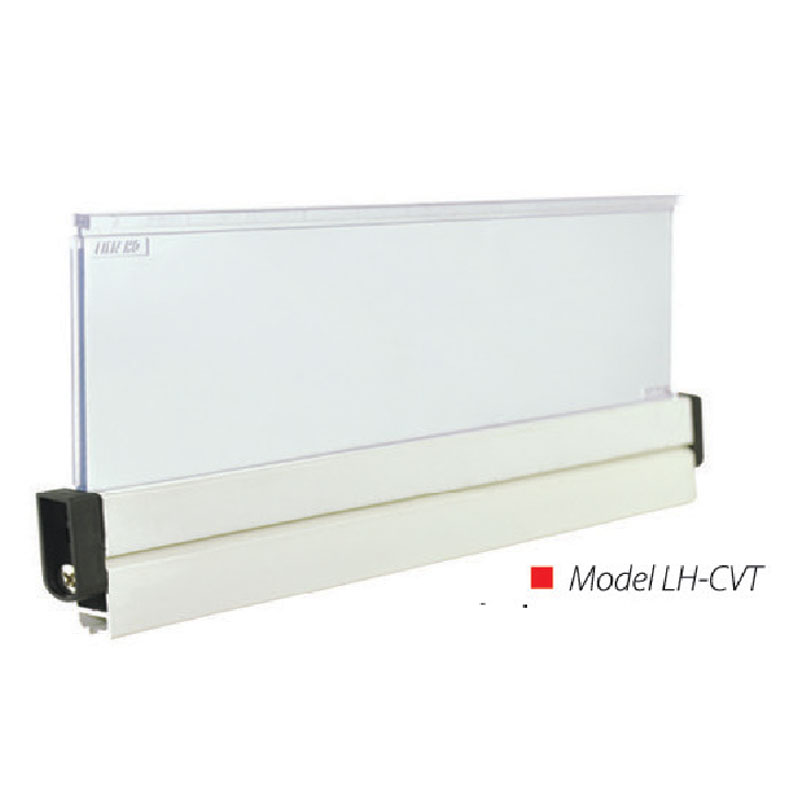

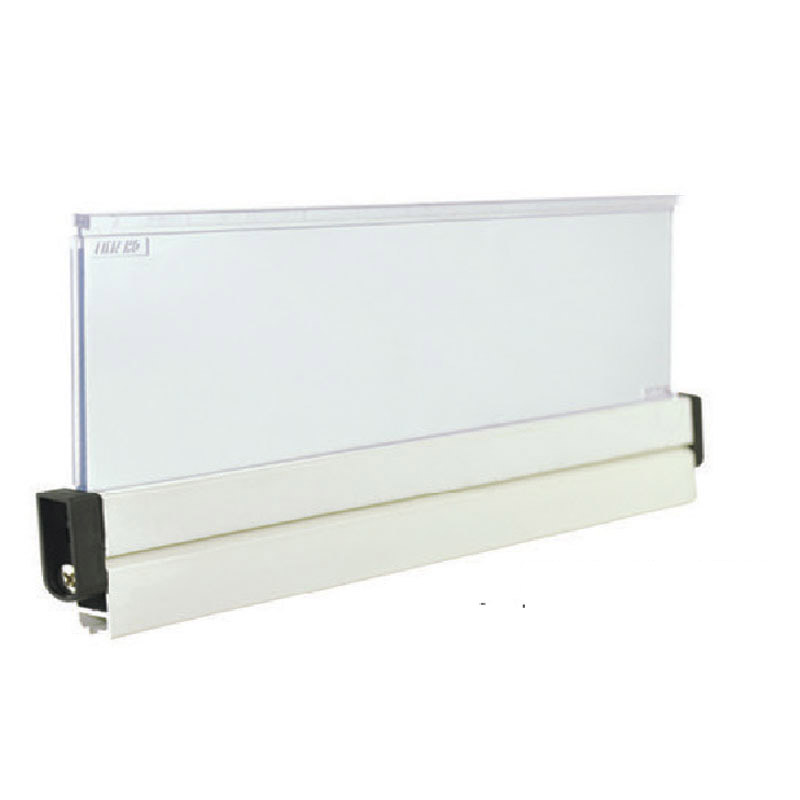

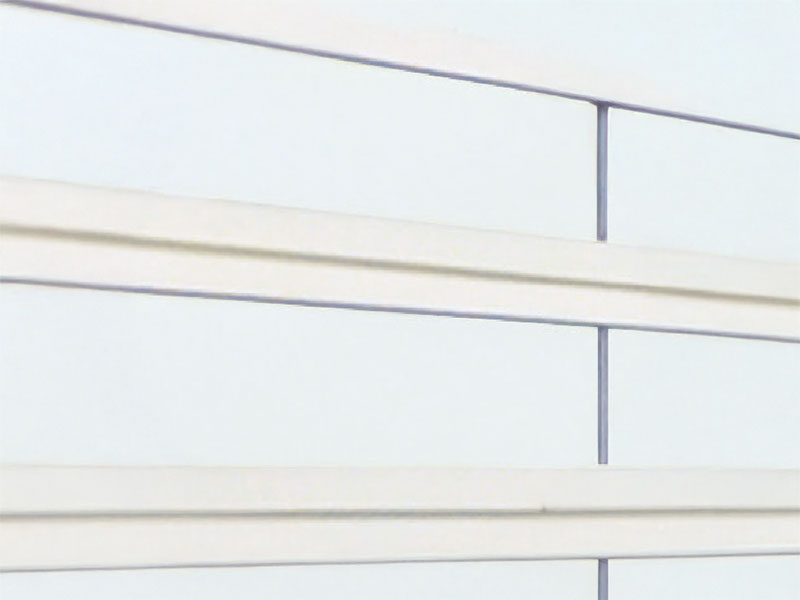

Shutter Curtain

Premier Grade UV protected Polycarbonate resin with extruded aluminium 6063 TS hinges. Antirush and high clear transparency appearance. No dust collection between polycarbonate and aluminium hinge. Material specification extruded aluminium 6063-TS. Model : LH-CVT single layer 3.8mm PC panel Model: LH-CVT-D double layer PC panel

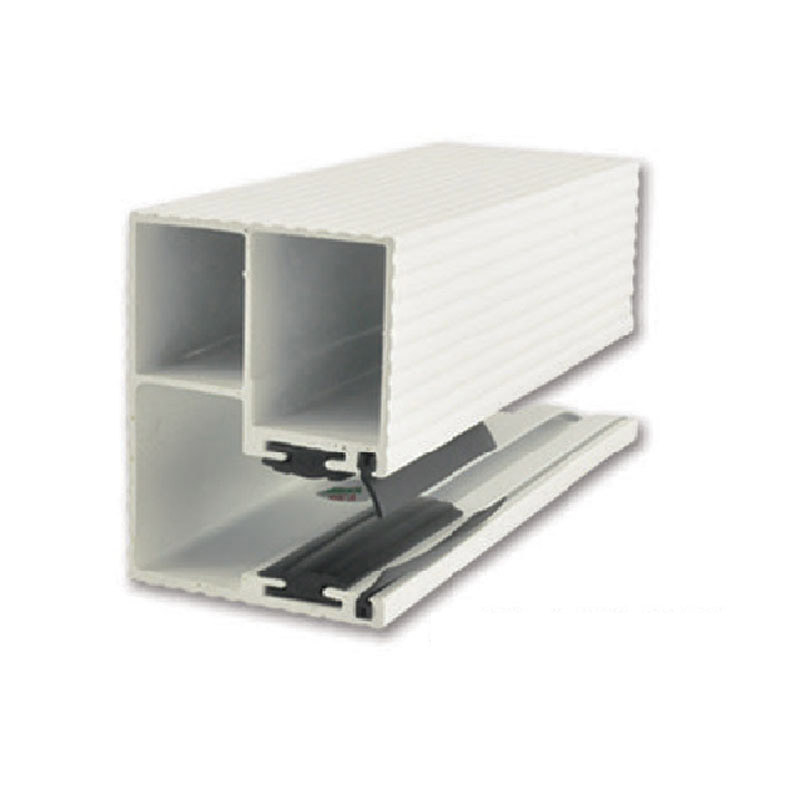

Side Guides

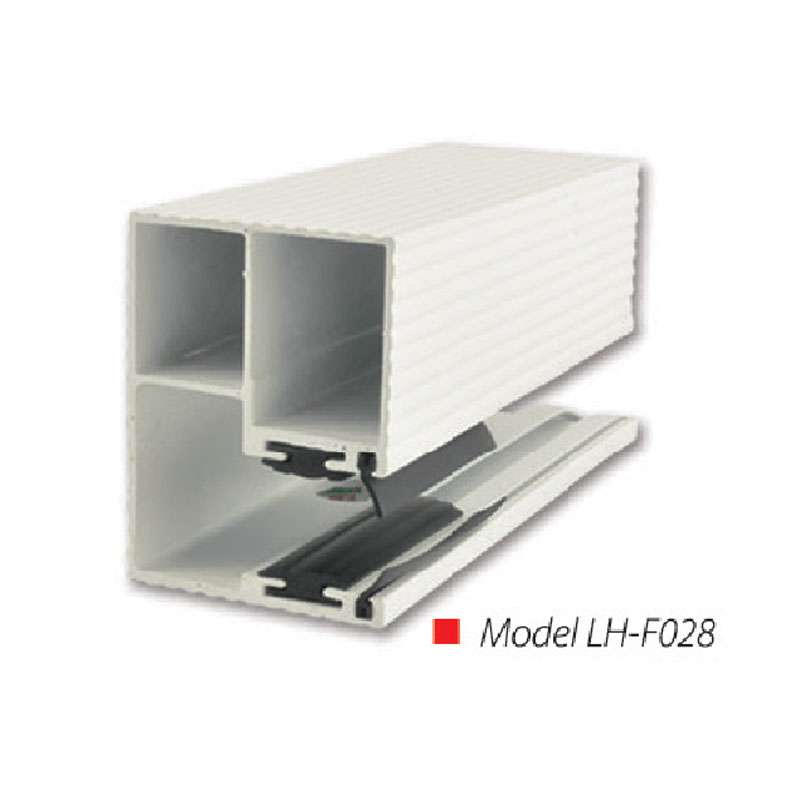

LH-F028 Extruded Aluminium Guide Rail

Special design LH-F028 extruded aluminium 6063 TS heavy duty surface mounted guide with Silenser belt and anti-wind design, rush proof, smooth, greaseless and low noise. Material specification extruded aluminium 6063-TS.

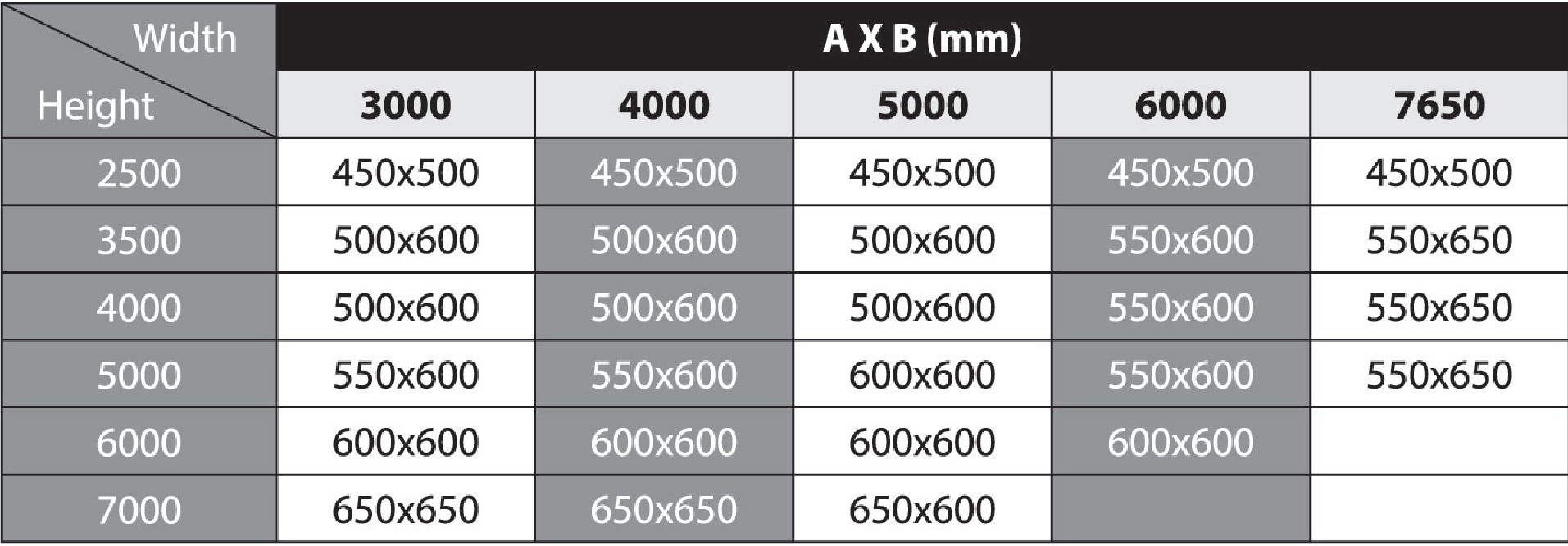

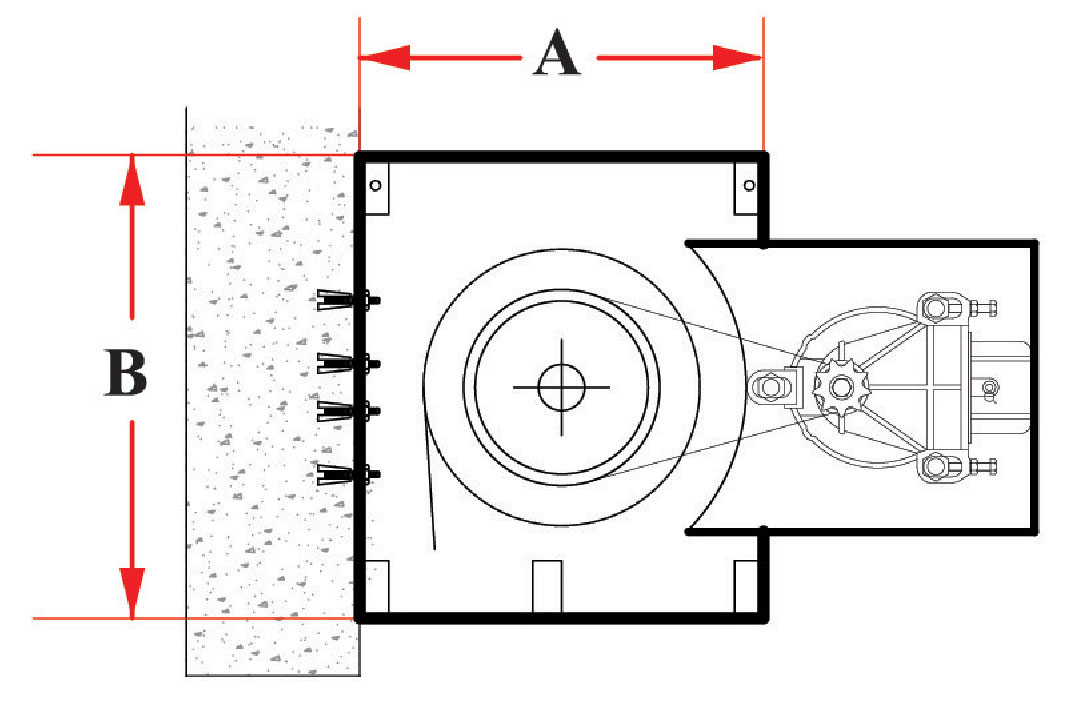

Shutter Box

Fabricated from 1st grade steel hollow sections with galvanized steel sheets covers with corner folded edge to achieve maximum strength, minimum thickness of 1.2mm of minimum size 25mm x 50mm or 38mm x 65mm welded to the heavy duty end plate of minimum of S.8mm thickness.

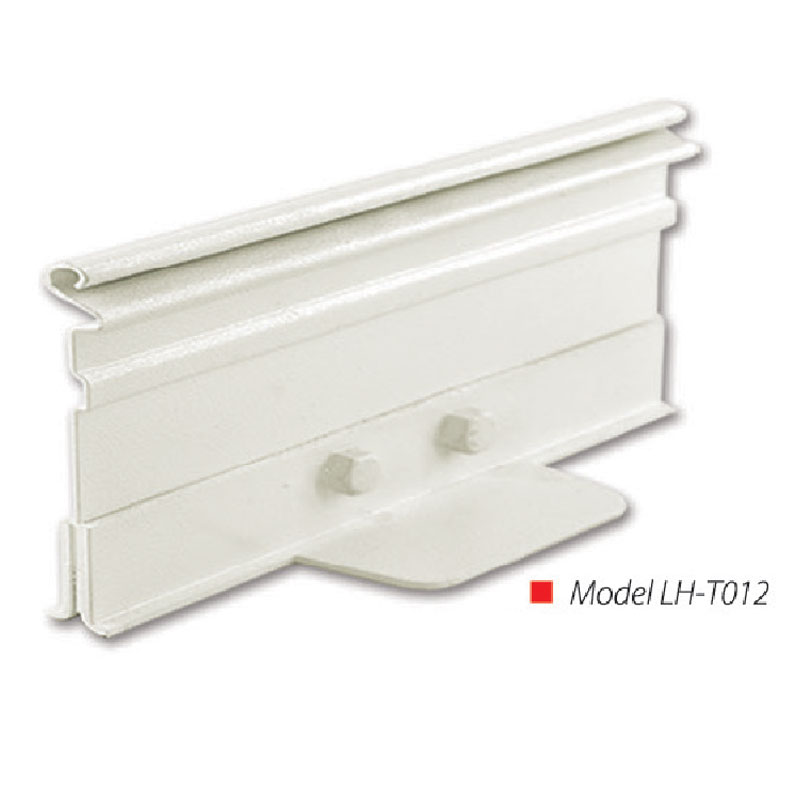

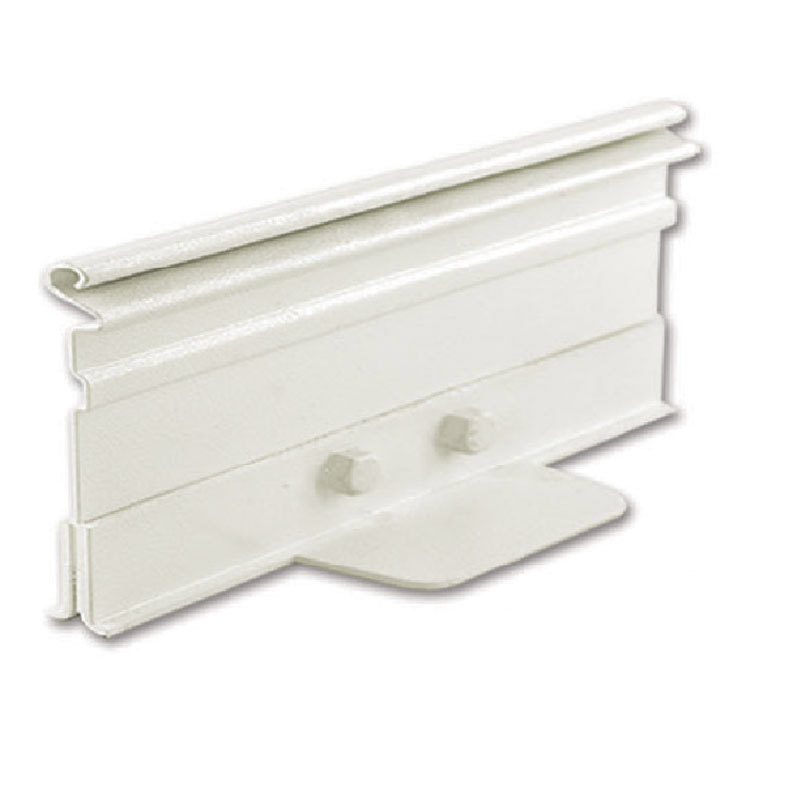

Bottom Bar

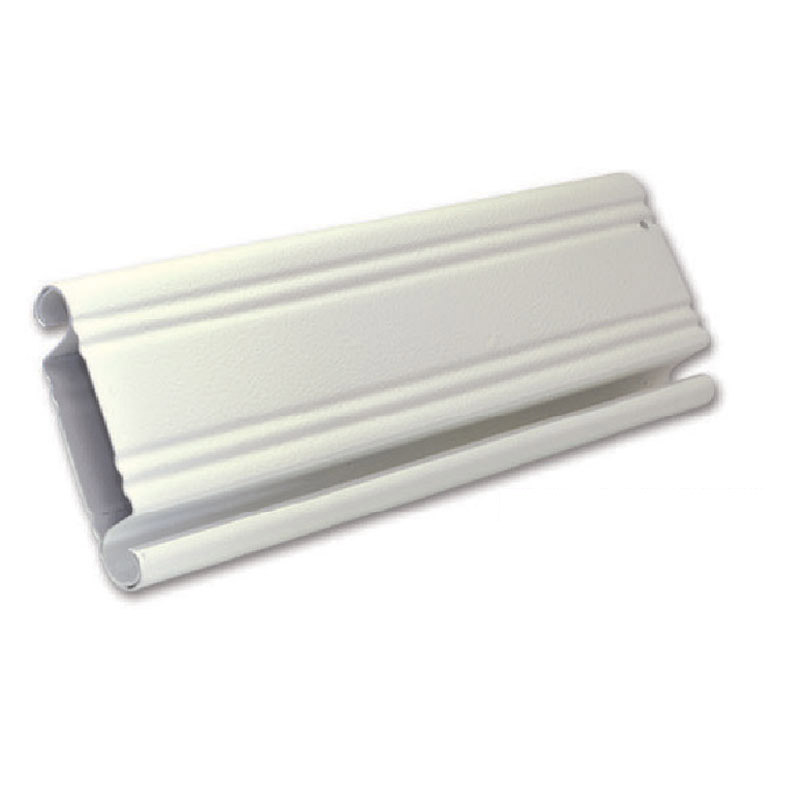

LH-T080 extruded aluminium 6063-TS Bottom Bar Extruded Aluminium 6063-TS “T” shape bottom bar come with weather seal to close up the uneven gap when shutter fully closed, both end with plastic end cap fixing for smooth operation. Strong and rush proof. Material specification extruded aluminium 6063-TS.

Optional Accessories

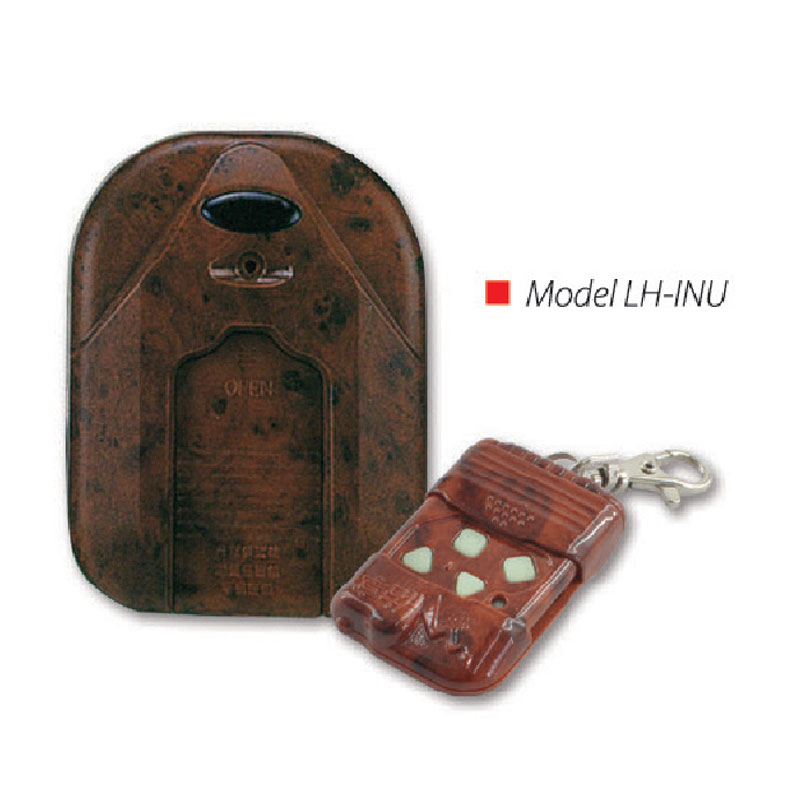

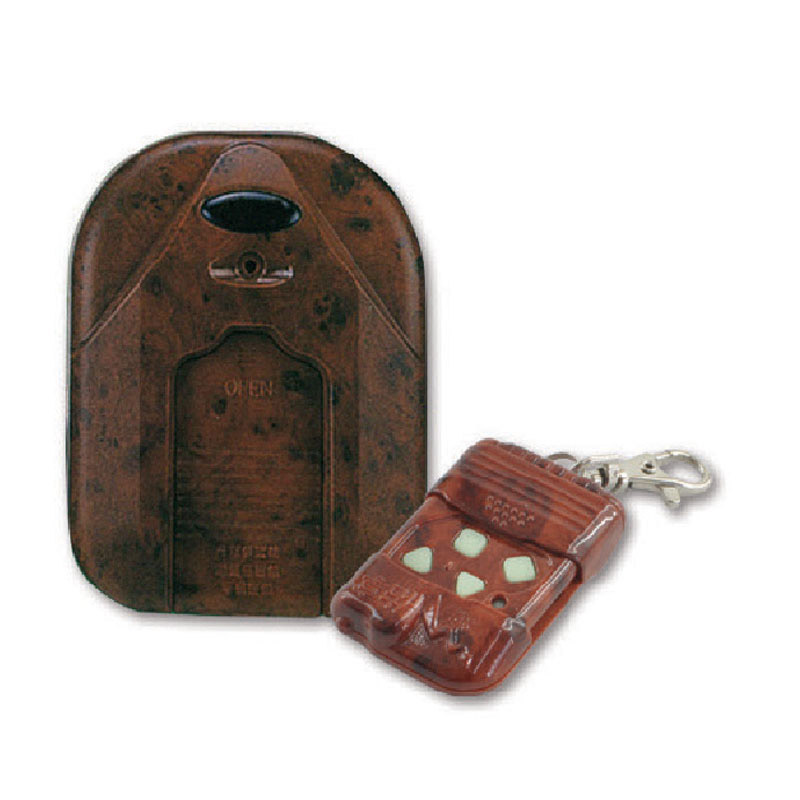

Remote Control
Bottom Safety Sensor
Anti Wind System

Drive Barrel

Fabricated from British Standard Welded Steel Pipes BS 1387 or JIS G34S2 with both sides solid steel shafts supported by enclosed bearings to both heavy duty end plates. All drive shafts shall be of solid steel shaft in single piece and fabricated from two heavy duty flange as standard and fully welded to the edge of barrel steel pipe both end. Minimum 16Smm diameter barrel pipe to provide zero deflection.

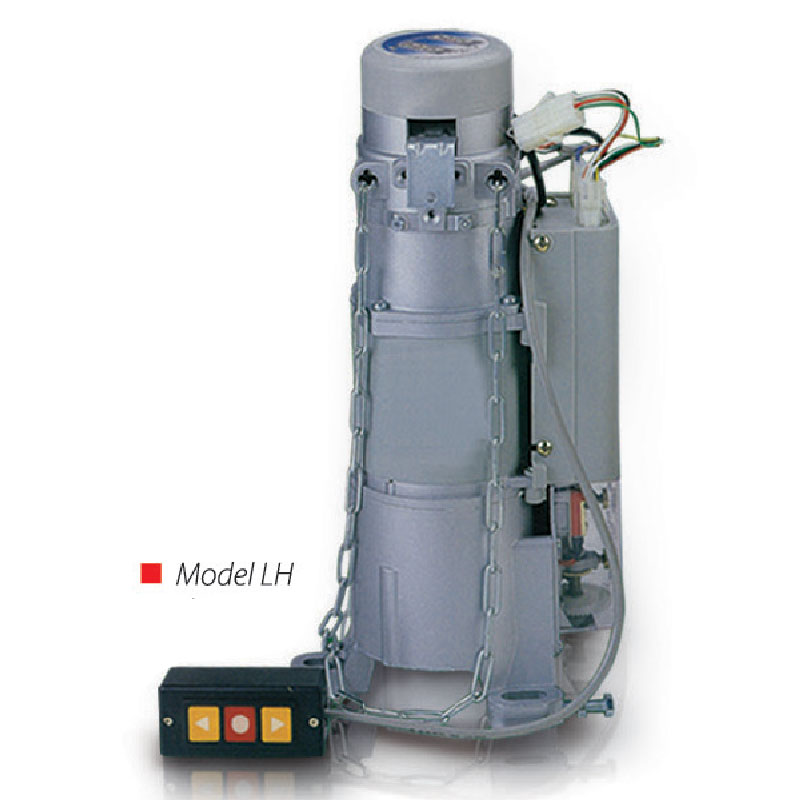

Operation Control

The control for opening and closing of shutters by means of 3 ways push button switch. Each motor is equipped with built in thermal protector, reduction speed gear box, manual override chain when power failure occurs, limit switches for setting upper and lower limit of shutter travel, minimum design of insulation class E, built in release level for gravity close as standard. Power source available in 230v single phase S0Hz and 41 Sv three phase S0Hz. Selection of power source according to manufac-turer standard for various size of shutter door opening width and height.
